Slickline

Impact Selector's range of slickline toolstring accessories expand the envelope of what is possible. From industry leading friction reduction to downhole jarring and specialist tools for gas lift valve change and safety valve maintenance, our clients have a greater chance of success.

Advanced Kickover Tool

The most advanced design of kickover tool available. Incorporates Roller Bogie technology to access more highly deviated gas lift mandrels and minimise the risk of misruns.

Nominal Size

Maximum Outer Diameter

Weight (lbs)

Length

Valve Size

2.375"
1.820"
48
112"
1.000"
2.375"
1.850"
48
112"
1.000"
2.875"
2.160"
48
112"
1.000"
2.875"
2.250"
48
112"
1.000"
3.500"
2.720"
58
111"
1.000" / 1.500"
4.500"
3.500"
108
123"
1.500"
4.500"
3.700"
108
123"
1.500"
5.500"
4.350"
156
117"
1.500"
5.500"
4.500"
156
117"
1.500"
7.000"
5.180"
183
117"
1.500"
7.000"
5.750"
183
117"
1.500"
Standard, Sour or Severe Sour Service available.
Connections available to suit customer specifications.

Features:

  • Low friction roller assemblies and low torque swivels.

  • Integral valve catcher, radially balanced.

  • Easily maintained.

  • Available for all mandrel sizes and tubing restrictions.

    Benefits:

    • Reduce operating time and cost by increasing the chance of first time success, regardless of mandrel deviation or pocket orientation.

    • Assist the operator by improving tool string visibility at surface, reducing the possibility of a costly misrun.

    • Reduce the risk to asset by eliminating a minimum of two runs due to the inclusion of an integral valve catcher.

      Impact Selector’s Advanced Kickover Tool (AKT) is designed to deliver exceptional performance during gas lift interventions. The AKT is used globally, with a proven track record of success at inclinations up to 83° and can be supplied to suit all gas lift mandrel sizes.

      The AKT incorporates many unique features, including highly efficient rollers which eliminate contact friction, enabling access to gas lift mandrels located at higher deviations.A further benefit of reduced friction is a more precise indication at surface of tool string load transfer. This al- lows the slickline operator to identify tool string movement more easily, enabling improved decision making and reducing the chance of a misrun.

      The majority of the industry remains cautious when designing gas lift completions, tending to place gas lift mandrels in areas of the well that are considered accessible using standard slickline techniques.However, this approach can lead to suboptimal production rates. The AKT specifically addresses these challenges, enabling gas lift mandrels to be positioned at greater true vertical depth therefore optimizing production opportunity.

      To enable access and maximize operational efficiency within mandrels located at higher deviations, Impact Selector’s Roller Bogie® conveyance system and Low Loader Roller Bogie Jar are typically used in combination with the AKT.

      AKT awareness sessions can be provided upon request, which are aligned with the industry’s need to focus on competency and service quality levels within gas lift in- tervention operations.

      +

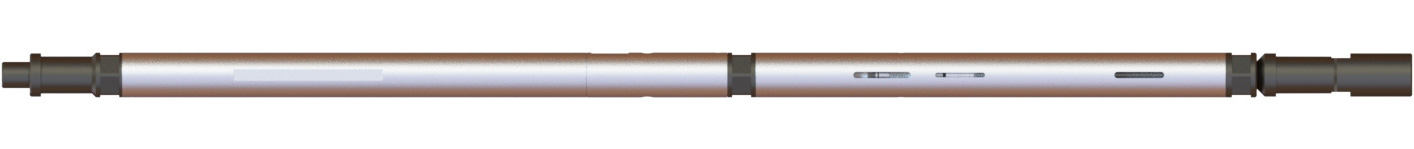

      Blockbuster Jar

      One of the hardest hitting slickline jars available today. Protect against time consuming and expensive stuck tool strings and fishing jobs in slickline operations.

      Diameter

      1.812"

      Pin / Box

      5/8 & 3/4 SR

      Fishing Neck

      13/8 & 13/4

      Length (closed / open)

      55.562" / 62.188"

      Approximate Weight

      34.5lbs

      Field Adjustability

      150 - 3,200lbs

      Total Stroke

      6.625"

      Power Stroke

      5.188"

      Features:

      • Reliable all-mechanical design is unaffected by pressure or temperature.

      • Resets down hole immediately under its own weight for instant and unlimited activations.

      • Resets down hole immediately. Can be run and maintained by customer personnely under its own weight for instant and unlimited activations.

          Benefits:

          • Field adjustable, to save time and money.

              Impact Selector’s Blockbuster Jar is designed for specific application in the slickline environment. The advanced technology of this tool ensures high performance to protect against time consuming and expensive stuck tool strings and fishing jobs.

              With slickline there is often a very limited amount of overpull available to free stuck tools. Impact Selector’s jars act to greatly increase the force available at the tools through using energy stored in compressed springs and the slickline itself to create a powerful upwards impulse.

              The jar activation force can be easily adjusted at surface while in the string to account for different operations.
              Available in a range of sizes and with all major types of connection, these our jars are an essential addition to any slickline operation.

              The Blockbuster is designed to provide extra-high impact for ultra-demanding slickline operations, including heavy duty fishing, with solid or braided wirelines; delivering over 25,000 lb of impact force.

              Simple design and adjustment mechanism allows trained customer personnel to run and maintain the tools.

              +

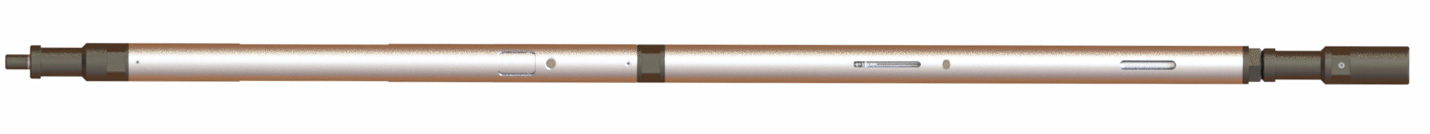

              Xcalibur Jar

              Provides significant downhole impact to ensure our client's toolstrings return to surface safely in any well bore conditions.

              Diameter

              1.5"
              1.562"

              Pin / Box

              5/8 SR
              5/8 & 3/4 SR

              Fishing Neck

              13/8
              13/8 & 13/4

              Length (closed / open)

              53.07" / 59.237"
              55.813" / 63"

              Approximate Weight

              7lbs
              23lbs

              Field Adjustability

              100—1,200lbs
              250 - 1,400lbs

              Total Stroke

              6.167"
              6.189"

              Power Stroke

              5"
              4.875"

              Features:

              • Reliable all-mechanical design is unaffected by pressure or temperature.

              • Resets down hole immediately under its own weight for instant and unlimited activations.

              • Can be run and maintained by customer personnel.

                  Benefits:

                  • Field adjustable, to save time and money.

                      Impact Selector’s Xcalibur E-line wireline jar is a powerful yet cost effective way to reduce risk in electric wireline cased hole operations.

                      With the smaller cables used for cased hole operations there is often a very limited amount of overpull available to free stuck tools.

                      The Xcalibur jar acts to greatly increase the force available at the cablehead through using energy stored in compressed springs and the wireline itself to create a powerful upwards impulse on the tools. As the force acts on the bottom of the jar, the cablehead is protected from the impact and remains unaffected.

                      The jar activation force can be easily adjusted at surface while in the string to account for different operations.
                      Available in a range of sizes and with all major types of mono-conductor connection, Xcalibur is ideal for most logging, perforating, pipe recovery and plug setting operations.

                      Simple design and adjustment mechanism allows trained customer personnel to run and maintain the tools.

                      +

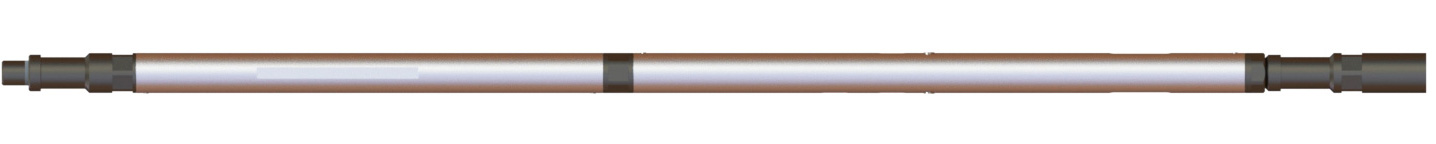

                      Impact SL Jar

                      Protect against time consuming and expensive stuck tool strings and fishing jobs in slickline operations.

                      Diameter

                      1.5"

                      Pin / Box

                      5/8 & 3/4 SR

                      Fishing Neck

                      13/8 & 13/4

                      Length (closed / open)

                      52" / 59"

                      Approximate Weight

                      20lbs

                      Field Adjustability

                      250 - 1,400lbs

                      Total Stroke

                      7.0"

                      Power Stroke

                      5.688"

                      Features:

                      • Reliable all-mechanical design is unaffected by pressure or temperature.

                      • Resets down hole immediately under its own weight for instant and unlimited activations.

                      • Can be run and maintained by customer personnel.

                          Benefits:

                          • Field adjustable, to save time and money.

                              Impact Selector’s Impactor SL Jar is designed for specific application in the slickline environment. The advanced technology of this tool ensures high performance to protect against time-consuming and expensive stuck tool strings and fishing jobs.

                              With slickline there is often a very limited amount of overpull available to free stuck tools. Impact Selector’s jars act to greatly increase the force available at the tools through using energy stored in compressed springs and the slickline itself to create a powerful upwards impulse.

                              The jar activation force can be easily adjusted at surface while in the string to account for different operations.
                              Available in a range of sizes and with all major types of connection, these our jars are an essential addition to any slickline operation.

                              The Impactor SL is the ideal choice for general fishing and plug pulling service, especially for tight well bores and small diameter tubing.

                              Simple design and adjustment mechanism allows trained customer personnel to run and maintain the tools.

                              +

                              Low Friction Tubular Jar

                              Low coefficient of friction ensures the tool remains reliable in the harshest conditions.

                              Diameter

                              1.562"
                              1.182"

                              Length Closed / Open)

                              39.5" / 59.5"
                              41.5" / 61.5"

                              Approximate Weight

                              14lbs
                              20lbs

                              Stroke

                              20"
                              20"

                              Features:

                              • Intake and exhaust slots designed to maximize velocity for superior jarring force

                              • Through wired to allow full electrical pass through if required

                              • Suitable for conventional e-line or digital slickline applications.

                              • Robust and reliable

                              • Low maintenance requirements

                              • Available for all tubing sizes

                                Benefits:

                                • Deploy longer perforating guns in deviated wells.

                                • Protect high value equipment from frictional wear.

                                • Improve cable management by reducing erratic loading.

                                  Impact Selector’s Low Friction Tubular Slickline Jar delivers bi-directional impacts through wireline manipulation. Robust and reliable, the low friction tubular jar is engineered to deliver superior jarring forces under a wide range of operating environments.

                                  The tool features low friction surfaces to ensure peak performance; the reduced coefficient of friction ensures the tool will remain reliable in the harshest conditions.

                                  +

                                  High Deviation Roller Bogie Jar

                                  Virtually frictionless jar takes jarring to a new angle.

                                  Nominal Size

                                  Weight (lbs)

                                  Length

                                  Stroke Length

                                  2.275"
                                  1.820"
                                  46"
                                  30"
                                  2.600"
                                  1.850"
                                  63"
                                  30"
                                  3.000"
                                  2.160"
                                  79"
                                  30"
                                  3.350"
                                  2.250"
                                  110"
                                  30"
                                  3.600"
                                  2.720"
                                  117"
                                  30"
                                  Standard, Sour or Severe Sour Service available.
                                  Connections available to suit customer specifications.

                                  Features:

                                  • Sized to match tool string Roller Bogie
                                    Bi-directional jarring.

                                  • Virtually no internal resistance.

                                  • Robust reliable design.

                                    Benefits:

                                    • Effective extreme deviation mechanical jarring action.

                                    • Assist the operator by improving tool string visibility on surface.

                                    • Clear and effective jarring action reported during fishing operations at 85° deviation.

                                      Impact Selector’s High Deviation Roller Bogie Jar is a radical step forward in mechanical jarring technology and performance, there’s nothing else like it.

                                      The High Deviation Roller Bogie Jar has a global presence and boasts a track record of successful operation up to deviations of 85°. The High Deviation Roller Bogie Jar has virtually no internal resistance. When run in combination with Impact Selector’s Roller Bogie conveyance system, an ultra low friction system is created that allows maximum acceleration of tool string mass at high deviations.

                                      +

                                      Low-Loader Roller Bogie® Jar

                                      Provides exceptional effective jarring action for larger bottom-end tools.

                                      Roller Bogie Size

                                      Weight (lbs)

                                      Length

                                      Stroke Length

                                      1.700"
                                      29
                                      69"
                                      20"
                                      2.125"
                                      33
                                      68"
                                      19"
                                      2.250"
                                      37
                                      69"
                                      19"
                                      2.270"
                                      34
                                      68"
                                      19"
                                      2.300"
                                      35
                                      67"
                                      19"
                                      2.400"
                                      35
                                      68"
                                      19"
                                      2.700"
                                      55
                                      76"
                                      20"
                                      2.800"
                                      62
                                      80"
                                      20"
                                      3.200"
                                      79
                                      88"
                                      20"
                                      3.250"
                                      81
                                      76"
                                      20"
                                      3.500"
                                      92
                                      79"
                                      20"
                                      3.550"
                                      99
                                      81"
                                      20"
                                      3.600"
                                      111
                                      92"
                                      20"
                                      3.700"
                                      105
                                      87"
                                      20"
                                      3.780"
                                      98
                                      78"
                                      20"
                                      4.000"
                                      120
                                      99"
                                      30"
                                      4.200"
                                      110
                                      80"
                                      20"
                                      4.380"
                                      120
                                      89"
                                      24"
                                      4.500"
                                      118
                                      84"
                                      20"
                                      5.940"
                                      193
                                      98"
                                      25"
                                      Standard, Sour or Severe Sour Service available.
                                      Connections available to suit customer specifications.

                                      Features:

                                      • Larger diameter tools such as kickover tools, plugs or drifts do not cause avoidable frictional drag.

                                      • Effective high deviation mechanical jarring.

                                      • Easier tool string manipulation.

                                      • Ability to run larger diameter equipment.

                                      • Enables access and jar action beyond conventional wireline depths and deviations.

                                          Benefits:

                                            • Large rollers elevate jar axis.

                                            • Fully aligned tubular jar delivers efficient jarring action to actuate bottom end tools.

                                            • Integral axis shift knuckle transfers jarring forces efficiently.

                                            • Balanced design Easily maintained.

                                              Impact Selector’s Low-Loader Roller Bogie Jar is designed to deliver exceptional jarring performance at high deviations and is used globally with a proven track record of success at deviations up to 83 degrees.

                                              The Low Loader Roller Bogie jar is deployed towards the bottom end of a slickline tool string providing support and delivering effective jarring action ideally suited to larger bottom end tools such as kickover tools and plugs. The Low Loader is typically used in combination with Impact Selector’s Advanced Kickover Tool TM (AKT).

                                              The Low Loader Roller Bogie jar is available with composite rollers for use in GRE lined tubing and in a wide range of sizes. All connection types are available to suit individual tool string requirements

                                              +

                                              Intensifier

                                              Increase downhole jarring energy and protect against shock damage.

                                              Diameter

                                              1.562"
                                              1.812"

                                              Pin/Box

                                              5/8 SR
                                              3/4 SR

                                              Fishing Neck

                                              13/8"
                                              13/4"

                                              Length (Closed / Open)

                                              39.67 / 47.67
                                              25,41.5 / 49.5000

                                              Approximate Weight

                                              17lbs
                                              24lbs

                                              Features:

                                              • Uses Belleville spring washers which provide a significantly greater force than a conventional coiled spring.

                                              • Short, compact design.

                                              • Available in 2 sizes: 1.562” and 1.812”.

                                                Benefits:

                                                • Stores additional energy when used with an Impact Selector jar to increase impact forces.

                                                • Provides highly effective shock absorption to help prevent tool or wire damage.

                                                    Like two tools in one, Impact Selector’s Intensifier functions as an acceleration tool or as a shock absorber device, depending on where it is positioned in the tool string.

                                                    Wireline jars rely on stored energy from both internal springs and in the stretched wireline to create impact forces. If additional energy is required then the Intensifier is placed above the jar to increase the energy storage capacity of the system with a powerful spring stack.

                                                    When placed below the cablehead, the same stack of springs will absorb shocks from below created by, perforating for example, to protect the rope socket and wireline from damage.

                                                    +

                                                    Slickline Roller Bogie

                                                    Reduce friction, reach extended depths and higher deviations without the need for costly services.

                                                    Roller Bogie Size

                                                    Weight (lbs)

                                                    Length

                                                    Maximum Conveyable Toolstring

                                                    1.600"
                                                    7
                                                    20"
                                                    1.375"
                                                    1.800"
                                                    10
                                                    21"
                                                    1.563"
                                                    1.900"
                                                    9
                                                    21"
                                                    1.688"
                                                    1.950"
                                                    9
                                                    19"
                                                    1.688"
                                                    2.125"
                                                    10
                                                    19"
                                                    1.750"
                                                    2.200"
                                                    10
                                                    19"
                                                    1.875"
                                                    2.275"
                                                    11
                                                    20"
                                                    1.938"
                                                    2.400"
                                                    11
                                                    20"
                                                    2.000"
                                                    2.500"
                                                    16
                                                    21"
                                                    2.125"
                                                    2.600"
                                                    17
                                                    21"
                                                    2.250"
                                                    2.770"
                                                    18
                                                    20"
                                                    2.375"
                                                    3.000"
                                                    20
                                                    22"
                                                    3.500"
                                                    3.350"
                                                    26
                                                    21"
                                                    2.875"
                                                    3.600"
                                                    29
                                                    22"
                                                    3.125"
                                                    3.700"
                                                    35
                                                    24"
                                                    3.250"
                                                    3.850"
                                                    37
                                                    25"
                                                    3.500"
                                                    4.100"
                                                    39
                                                    25"
                                                    3.625"
                                                    4.900"
                                                    50
                                                    25"
                                                    4.375"
                                                    5.500"
                                                    55
                                                    26"
                                                    5.000"
                                                    Standard, Sour or Severe Sour Service available.
                                                    Connections available to suit customer specifications.

                                                    Features:

                                                    • Self-orienting design.

                                                    • Low friction dual rollers

                                                    • Streamlined profile.

                                                    • Robust and durable tool design.

                                                    • Low maintenance requirements.

                                                    • Available for all tubing sizes

                                                      Benefits:

                                                      • Reach extended depths and higher deviations without need for costly services such as coiled tubing or wireline tractors.

                                                      • Lower pick up weight means reduced wire loading.

                                                      • More effective and visible jarring at greater depth or higher deviation due to efficient transfer of mass.

                                                      • Maintain completion integrity by protecting coated and high-chrome tubulars.

                                                      • Improve data quality by eliminating stick slip and achieving more constant logging speeds.

                                                        Impact Selector’s Slickline Roller Bogie tools enable slickline operations to be performed more quickly and easily. Operators can perform the work using the same equipment without changing wireline operating procedures resulting in time savings with less risk. This is the most efficient conveyance system available.

                                                        Used in most wellbore conditions slickline Roller Bogie tools can be installed at any point in the tool string. With independent swivels, the self-orienting roller body ensures the rollers are at all times oriented to the low side of the tubing. The tool string is lifted onto large, highly-efficient rollers, eliminating contact friction and enabling easier and deeper wellbore access.

                                                        Running weight remains positive and steady, pick-up weight is greatly reduced and the risk of wire breakage is lowered; jarring can be precise and more effective. Slickline Roller Bogie tools are available in a wide range of sizes to pass through all wellbore restrictions and can be ordered with a choice of connection types to suit individual tool string requirements.

                                                        +

                                                        Roller Bogie Guide

                                                        Impact Selector’s Guide Roller Bogie tools enable slickline and E-line operations to be performed more quickly and easily.

                                                        Roller Bogie Size

                                                        Weight (lbs)

                                                        Length

                                                        Maximum Conveyable Toolstring

                                                        1.800"
                                                        11
                                                        23"
                                                        1.625"
                                                        1.900"
                                                        9
                                                        20"
                                                        1.688"
                                                        1.950"
                                                        9
                                                        16"
                                                        1.688"
                                                        2.125"
                                                        9
                                                        18"
                                                        1.750"
                                                        2.275"
                                                        12
                                                        18"
                                                        1.938"
                                                        2.400"
                                                        12
                                                        20"
                                                        2.000"
                                                        2.500"
                                                        13
                                                        20"
                                                        2.125"
                                                        2.600"
                                                        13
                                                        19"
                                                        2.250"
                                                        2.770"
                                                        18
                                                        22"
                                                        2.375"
                                                        3.000"
                                                        19
                                                        20"
                                                        2.500"
                                                        3.275"
                                                        33
                                                        22"
                                                        2.875"
                                                        3.350"
                                                        35
                                                        22"
                                                        3.000"
                                                        3.600"
                                                        35
                                                        22"
                                                        3.125"
                                                        3.700"
                                                        39
                                                        22"
                                                        3.250"
                                                        3.850"
                                                        40
                                                        23"
                                                        3.500"
                                                        4.100"
                                                        46
                                                        23"
                                                        3.625"
                                                        4.900"
                                                        49
                                                        26"
                                                        4.375"
                                                        5.500"
                                                        65
                                                        26"
                                                        5.000"
                                                        5.800"
                                                        75
                                                        27"
                                                        5.000"
                                                        Standard, Sour or Severe Sour Service available.
                                                        Connections available to suit customer specifications.

                                                        Features:

                                                        • Self-orienting design

                                                        • Low friction dual rollers

                                                        • Streamlined profile

                                                        • Robust and durable tool design

                                                        • Low maintenance requirements

                                                        • Available for all tubing sizes

                                                          Benefits:

                                                          • Reach extended depths and higher deviations without the need for costly services such as coiled tubing or wireline tractors.

                                                          • Lower pickup weight means reduced wire loading.

                                                          • More effective and visible jarring at greater depth or higher deviation due to efficient transfer of mass.

                                                          • Maintain completion integrity by protecting coated and high chrome tubulars.

                                                          • Improve data quality by eliminating stick-slip and achieving more constant logging speeds.

                                                            Operators can perform the work using the same equipment without changing wireline operating procedures resulting in time savings with less risk. This is the most efficient conveyance system available for deviated intervention work when used in conjunction with E-line, slickline and other Roller Bogie tools.

                                                            Used in most wellbore conditions, up to 87° deviation, Guide Roller Bogie tools are installed on the bottom end of the tool string.

                                                            With independent swiveling, the self-orienting roller body ensures the rollers are oriented at all times to the low side of the tubing. The tool string is lifted onto large, highly efficient rollers, eliminating contact friction and enabling easier and deeper wellbore access. Running weight remains positive and steady; pick-up weight is greatly reduced and the risk of wire breakage is lowered.

                                                            Guide Roller Bogie tools are available in a wide range of sizes to pass through all wellbore restrictions and can be ordered with a choice of connection types to suit individual tool string requirements.

                                                            +

                                                            Double Knuckle Joint

                                                            Augments jarring performance in deviated wells.

                                                            Size

                                                            Weight

                                                            Length

                                                            1.250"
                                                            2lbs
                                                            17"
                                                            1.500"
                                                            7lbs
                                                            16"
                                                            1.750"
                                                            10lbs
                                                            17"
                                                            1.875"
                                                            11lbs
                                                            16"
                                                            2.125"
                                                            15lbs
                                                            17"
                                                            2.500"
                                                            23lbs
                                                            20"
                                                            Standard, Sour or Severe Sour Service available.
                                                            Connections available to suit customer specifications.

                                                            Features:

                                                            • Minimal angular movement eliminates over-flex.

                                                            • Maximizes load transfer between jar and larger lower tool string component when flexed.

                                                                Benefits:

                                                                • Robust design to accommodate mechanical jarring impact.

                                                                • Limited 5° axis shift ensures continual linear platform throughout tool string.

                                                                    Impact Selector’s Limited Articulation Double Knuckle Joint is designed with mechanical jarring in mind. Industry standard knuckle joints are typically manufactured with a 10 to 15 degree deflection angle taken from the center line.

                                                                    Impact Selector’s knuckle joints are limited to 5 degrees. A 5 degree axis shift ensures a continual linear platform throughout the tool string with sufficient flexibility to allow tool strings to negotiate restrictions and upsets within the well while still transmitting mechanical forces effectively.

                                                                    The Double Knuckle Joint when used in combination with the High Deviation Roller Bogie jar and Roller Bogie system can augment jarring performance in deviated wells. The tool is available with all industry standard connections and is also available as a single knuckle.
